Partial rear brake kit 8.1 with DAYTONA caliper and support for Minarelli engine blocks long arm, disc, horizontal cylinder, Malossi C One, 2 Fast, Yamaha Aerox / Nitro, Malaguti Phantom, Carter 8.1 Fireblade

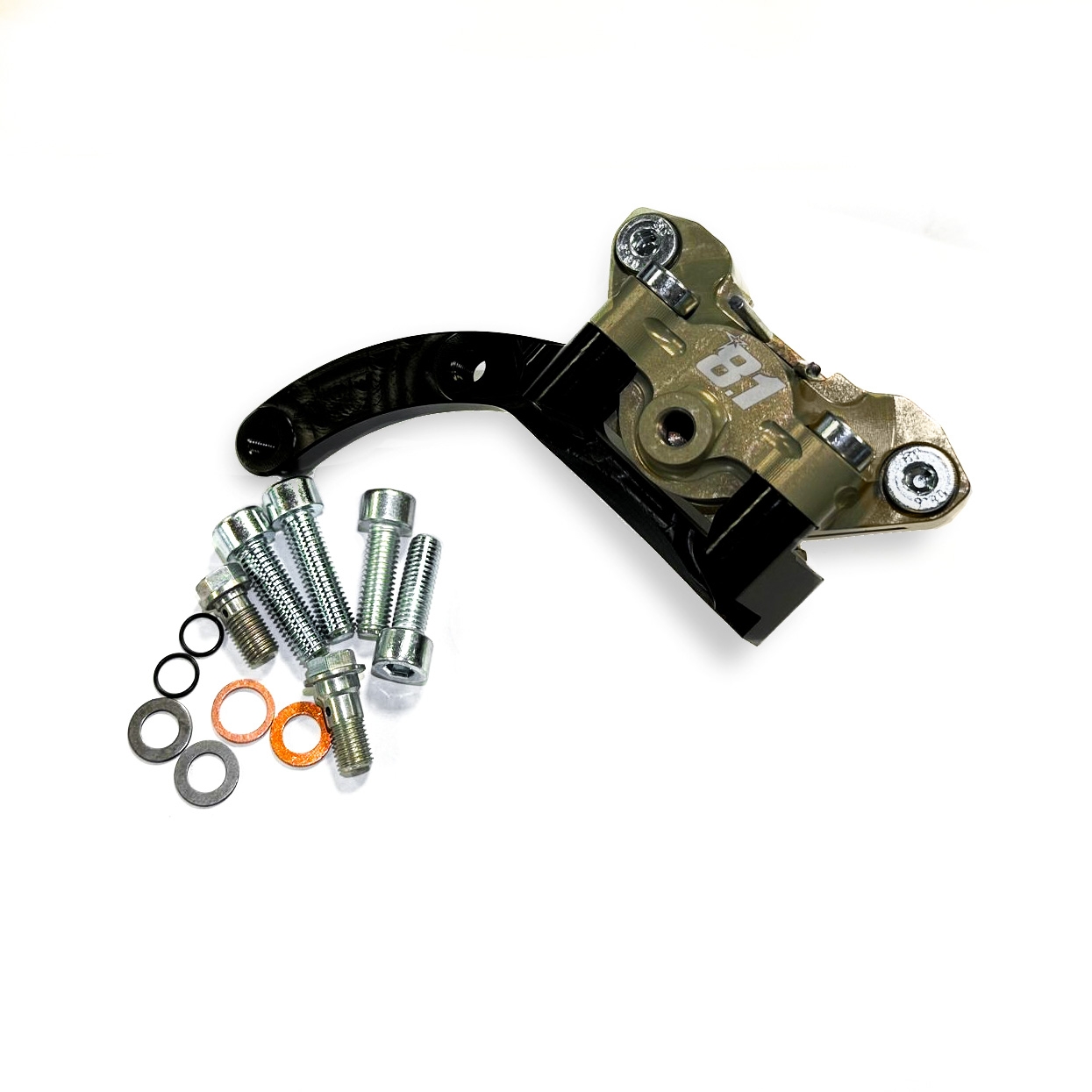

The particular downward positioning allows for maximum cooling by exposing the caliper to the air flow. Check the assembly in the center of the disc and, if necessary, use the two D8 shims supplied with the kit to align (some wheel hubs have different depths, or are mounted with shims). Composed of 8.1 CNC Ergal brake caliper with 2 pistons, anodized Ergal support complete with assembly details, 1 M8x1 connecting bolt, 2 sealing O-rings, 1 M8-10 reduction connecting bolt if a standard Ø10mm tube and 4 M8 fixing screws are used. For optimal assembly with standard pumps with M10 thread, we recommend the use of the braided hose L 200cm, rings Ø8-10mm. Fits with original 190mm diameter discs. Product made in Italy.
